Android 3D Secure 2 SDK

The Adyen 3DS2 Android SDK gets the device fingerprint and presents the challenge to your shopper. From your server, you need to send a payment request, the encrypted device fingerprint, and the challenge result to Adyen.

In a full 3D Secure 2 implementation, a payment can go through either a frictionless or a challenge authentication flow before it can be authorised.

If you only want to perform a 3D Secure 2 authentication and then authorise the payment later, refer to the Authentication-only documentation.

How it works

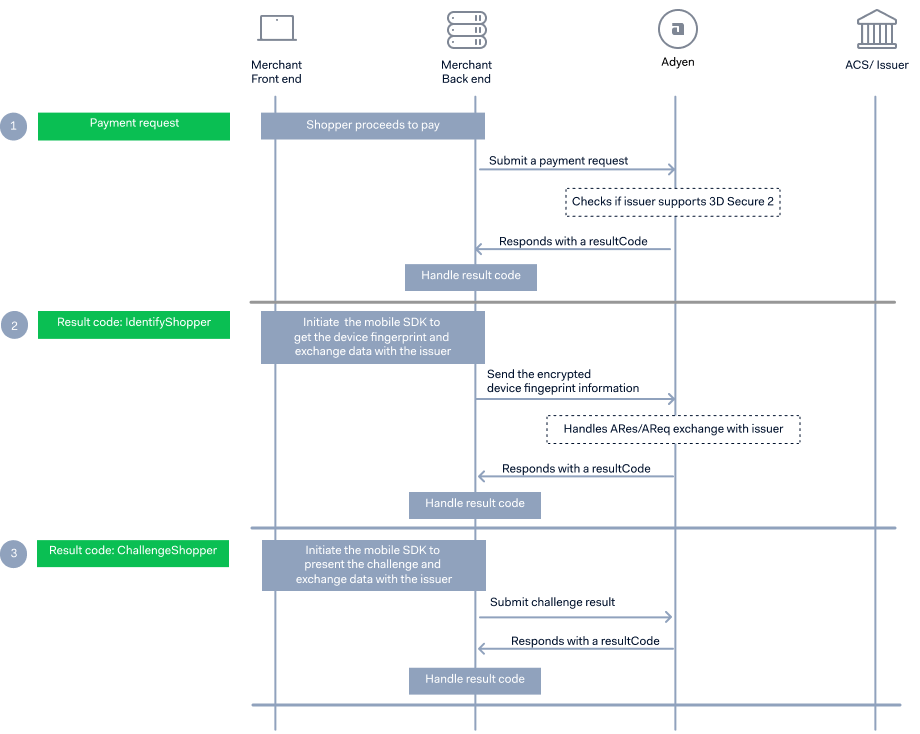

Here's how a 3D Secure 2 challenge authentication flow works:

1. Submit a payment request with the required 3D Secure 2 objects to start the authentication process. Build your implementation depending on the resultCode returned in the response. If the transaction is exempted from 3D Secure, you might get an Authorised result code.
2. If you receive an IdentifyShopper resultCode, get the 3D Secure 2 device fingerprint and send the encrypted device fingerprint information to Adyen. After you send the device fingerprint, it is possible that you receive an AuthorisedresultCode in the response. This means that the 3D Secure 2 authentication was frictionless, and the payment was authorised.
3. If you receive ChallengeShopperresultCode, this means that the issuer requires further shopper interaction and you need to present a challenge to the shopper.
4. After the 3D Secure 2 flow is complete, whether the transaction is successful or not, close the transaction and clean up the ThreeDS2Service.INSTANCE.

The payment might also be routed to 3D Secure 1, based on issuer performance. This is indicated by a RedirectShopper resultCode. If you do not want to automatically fall back to 3D Secure 1, contact our Support Team.

To test your integration, see Testing 3D Secure 2.

Before you begin

Before you begin to integrate, make sure you have followed the Get started with Adyen guide to:

• Get an overview of the steps needed to accept live payments.
• Create your test account.

After you have created your test account:

1. Get your API Key. Save a copy, because you'll need it for API calls you make to the Adyen payments platform.

2. Install one of our Libraries to connect with the Adyen APIs.

3. Install the latest SDK version either through Maven Central or our GitHub repository. You must use version 2.2.9 or later to trigger the 3D Secure 2 native flow.

Step 1: Submit a payment request

Collect your shopper's card details then make a payment with a POST /authorise request, and include the following:

Parameter name	Required	Description
card		Object that contains the shopper's card details.
threeDS2RequestData.deviceChannel		Set to app.
browserInfo		Object that contains the userAgent and acceptHeader fields. Indicates that your integration can handle 3D Secure 1 redirect authentication in case the transaction is routed to 3D Secure 1. If your integration is unable to generate this information, you can send the same data as in the request below.
sdkVersion		We recommend you use the ThreeDS2Service.INSTANCE.getSDKVersion() function to determine your 3DS2 sdkVersion. You can also get the sdkVersion from Github

Here is an example of how to make a request for a EUR 150 purchase:

You receive a response containing a resultCode of:

•  IdentifyShopper. This means that you need to perform the Identify the shopper flow. You also get the following parameters from the response, which you'll need to create a transaction in the SDK:
  • additionalData.threeds2.threeDS2DirectoryServerInformation.directoryServerId
  • additionalData.threeds2.threeDS2DirectoryServerInformation.publicKey
  • additionalData.threeds2.threeDS2DirectoryServerInformation.rootCertificates
  • additionalData.threeds2.threeDS2ResponseData.messageVersion

We recommend that you always get these values from the /authorise response and pass them to the SDK.

Here's an example of a response showing an IdentifyShopper result code:

Save additionalData.threeds2.threeDS2Token and include it in every request.

Step 2: Get the 3D Secure 2 device fingerprint

If your server receives an IdentifyShopper resultCode, start the 3D Secure 2 device fingerprinting process.

1. Create an instance of ConfigParameters passing the directoryServerId, the publicKey and the rootCertificates parameters from the /authorise response or from your prefetched cached keys.

   ConfigParameters configParameters = new AdyenConfigParameters.Builder(
           {hint:The directoryServerId from the authorise response}directoryServerId{/hint},
           {hint:The publicKey from the authorise response}directoryServerPublicKey{/hint},
           {hint:The rootCertificates from the authorise response}directoryServerRootCertificates{/hint} // null if using prefetched device fingerprinting keys.
   ).build();

2. Use ThreeDS2Service.INSTANCE to create a transaction.

   • When using Adyen 3DS2 Android SDK version 2.2.0 and later, you must pass the value of additionalData.threeds2.threeDS2ResponseData.messageVersion from the /authorise response into createTransaction.

     For more information about the latest SDK version, refer to Migrating to 3DS2 SDK version 2.2.0.

   Keep a reference to your Transaction instance until the transaction is complete.

3. Use the AuthenticationRequestParameters to get the device fingerprint information.

   AuthenticationRequestParameters authenticationRequestParameters = mTransaction.getAuthenticationRequestParameters();

   You'll get the following information:

   • transaction.authenticationRequestParameters.deviceData
   • transaction.authenticationRequestParameters.SDKTransactionID
   • transaction.authenticationRequestParameters.SDKAppID
   • transaction.authenticationRequestParameters.SDKReferenceNumber
   • transaction.authenticationRequestParameters.SDKEphemeralPublicKey
   • transaction.authenticationRequestParameters.messageVersion



4. From your server, make a POST /authorise3ds2 request to send the encrypted device fingerprint information to Adyen:

   • sdkEncData: Device data
   • sdkTransID: SDK Transaction ID
   • sdkAppID: SDK App ID
   • sdkReferenceNumber: SDK Reference Number
   • sdkEphemPubKey: The SDK provides output as a string. Transform this string into a JSON object to send in your /authorise3ds2 request.
   • messageVersion: 3D Secure 2 protocol version

     You can send additional parameters for better authorization rates, and to increase the chance of a frictionless flow. You do not have to send all the additional parameters. Send parameters that you know you can provide accurately, or that are mandatory in specific scenarios.

   You receive a response containing a resultCode. Some of the possible values for resultCode are:

   • Authorised – Indicates that the 3D Secure 2 authentication was frictionless, and the payment authorisation was successfully completed. This means that you can already proceed with the delivery of goods and services.
   • ChallengeShopper – The issuer has requested further shopper interaction. This means that you'll have to perform the challenge flow. You also get the following parameters from the response, which you'll need to start the challenge flow in the SDK:
     • threeds2.threeDS2ResponseData.threeDSServerTransID
     • threeds2.threeDS2ResponseData.acsTransID
     • threeds2.threeDS2ResponseData.acsReferenceNumber
     • threeds2.threeDS2ResponseData.acsSignedContent
     • threeds2.threeDS2Token

   For a complete list of resultCode values and the actions that you need to take, see Result codes.

   Here's an example of a challenge flow response:

Step 3: Present a challenge

If your server receives a ChallengeShopper resultCode, this means that the issuer would like to perform additional checks in order to verify that the shopper is indeed the cardholder.

1. Create an instance of ChallengeParameters and pass the following:

   • The values from the /authorise3ds2 response.

   • ThreeDSRequestorAppURL: This field is an optional field. If you use Adyen 3DS2 Android SDK version 2.2.12 and later, your ThreeDSRequestorAppURL should be an Android App Link. This is used to call your app after an out-of-band (OOB) authentication. Your app must handle the Android App Link. Supported in 3D Secure version 2.2.0 and later.

2. Present the challenge.

3. When the challenge flow has been completed, get the transactionStatus from the completionEvent and pass this to your server.

4. From your server, make a POST /authorise3ds2 request specifying the transStatus generated by the SDK and the threeds2.threeDS2Token.

   You'll receive Authorised as the resultCode if the payment was successful.

Handling Android App Links

1. Copy the following code to your app Manifest file. Replace the value of android:host from {yourapp.com} with your web domain name. Do not change any other configuration.

   Optional: You can specify another value for android:pathPrefix that will generate a unique App Link.

2. Verify the App Link following Android documentation

Step 4: Close the transaction

A transaction instance can only be used once. Close every transaction when it is finished and clean up the ThreeDS2Service.INSTANCE, whether it was successful or not.

UI customizations

Customize the SDK theme

The SDK inherits your app's theme to ensure the UI of the challenge flow fits your app's look and feel. You can override the default SDK theme to inherit from one of AppCompat's theme variants. To do this, add the following XML snippet to your styles.xml file.

<style name="ThreeDS2Theme" parent="Theme.AppCompat.Light.DarkActionBar">
    <!-- Customize the SDK theme here. -->
    <item name="colorPrimary">@color/colorPrimary</item>
    <item name="colorPrimaryDark">@color/colorPrimaryDark</item>
    <item name="colorAccent">@color/colorAccent</item>
</style>

Customize UI elements

If you require further UI customizations, the SDK provides some customization options through the UiCustomization class.

To use the UiCustomization class, create an instance of UiCustomization, configure the UI elements that you want to customize, and pass it during initialization of the ThreeDS2Service.INSTANCE.

For example, to change the toolbar's title text and text color:

Customizable UI elements

You can also customize the following UI elements used in the challenge flow:

Testing 3D Secure 2

Before going live, use the following card numbers and credentials to test your integration.

We recommend testing each Card Type.

To test how your integration handles different 3D Secure 2 authentication scenarios, use our test card numbers.

All our test cards use the following expiry dates and security codes:

When prompted for 3D Secure 2 text challenges, use the following credentials:

• For mobile, use password: 1234
• For web, use password: password

¹ This card doesn't require a CVC.

When you make a payment request with these cards, you'll receive the following result codes depending on your integration:

• RedirectShopper: You'll receive this result code if you are using the Redirect authentication.
• IdentifyShopper: You'll receive this result code if you are using the Native authentication.
• ChallengeShopper: You might get this result code after you submit the 3D Secure 2 device fingerprinting result in a Native authentication, indicating a challenge flow.

To test the web-based flow where the device fingerprinting step is skipped (because the issuer's ACS has not configured a threeDSMethodURL), and you get a ChallengeShopper resultCode immediately after submitting the payment request, use the following card:

To test the frictionless flow, specify in your payment request:

• amount.value: 12002

App-based integration

To test different authentication scenarios for app-based integration, use the following test cards:

Other scenarios

See also

• Android SDK on GitHub
• Javadoc SDK Reference
