S1F2 user manual

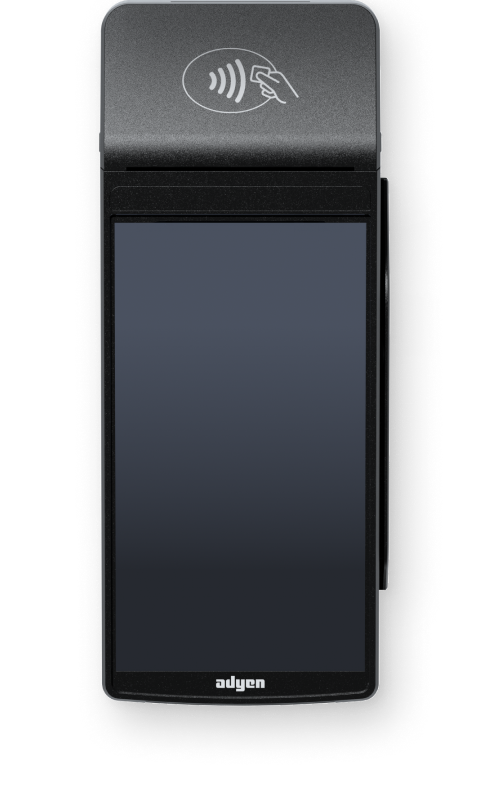

Get started with the S1F2 payment terminal.


Supplied components

  • S1F2 payment terminal
  • USB cable and region-specific power plug for charging
  • SIM card
  • Receipt paper roll

In the Adyen Customer Area, under In-person payments > Orders and returns you can order new paper rolls.

Get started

These are the steps to get your new S1F2 payment terminal up and running. Some steps include a link to more detailed instructions.

  1. Inspect the terminal.

  2. Insert the receipt paper roll.

  3. Turn on the terminal: connect the terminal to a power supply, then press and hold the power button until the display turns on.
    Let the battery charge for at least four hours while you continue with the next steps.

  4. On the Welcome screen, select your language.

  5. Connect the terminal to your network.

  6. On the Confirm store screen, assign the terminal to your store by selecting the check mark button. If the store shown is not your store, use the edit button to change it.

    If the store screen doesn't show, wait until the next synchronization with the Adyen platform (on average three hours) and try again.

When you have completed these steps, you are ready to process payments!

Watch this video showing the getting started steps:

Inspect the terminal

Como os terminais processam dados confidenciais do cartão, é importante garantir que o terminal que você recebeu seja o terminal Adyen correto e que não tenha sido adulterado. Se alguma das seguintes verificações falhar, entre em contato com nossa Support Team imediatamente.

  1. Verifique se a caixa que contém o terminal não foi aberta e se o selo de segurança está intacto.
    O selo de segurança é uma etiqueta vermelha com um código de barras e um número, colada na tampa da caixa.

  2. Se você tiver acesso à Customer Area da Adyen, faça o login e, em Point of sale, localize o pedido do seu terminal. Então:

    • Verifique se o terminal serial number (S/N) na caixa é igual ao da área do cliente.
    • Verifique se o security seal number na caixa é igual ao da área do cliente.
    • Usando as informações de track & trace na área do cliente, acompanhe o pedido com a transportadora para verificar se eles confirmam a entrega do terminal de pagamento.

  3. Quebre o selo de segurança, retire o terminal da caixa e verifique se o terminal serial number (S/N) no próprio terminal é o mesmo que o número de série na caixa.

  4. Inspecione o terminal quanto a adulteração. Verifique se faltam vedações ou parafusos, fios ou etiquetas adicionais, orifícios no dispositivo e qualquer coisa inserida ou conectada a qualquer parte do terminal, como o leitor de cartões ou as portas.

Insert the receipt paper roll

  1. Pull up the cover of the paper roll compartment.
  2. Insert the paper roll making sure the paper sticks out a bit.
  3. Close the cover of the paper roll compartment.

You can see how to insert the receipt roll in the Get started video starting at 1:10.

Connect to your network

Connect your terminal to the internet so that it can communicate with the plataforma de pagamentos da Adyen and your own back-end systems.

Connect to Wi-Fi

  1. After selecting your language on the Welcome screen, select the arrow button:
  2. On the Setup Wi-Fi screen, select the + sign.
  3. Turn on the WLAN toggle switch.
  4. Select a Wi-Fi network from the list, or select the + sign and add the name (SSID) of the Wi-Fi network.
  5. Enter the Wi-Fi password.
  6. Select OK.
    The terminal sets the network as default automatically, and connects to it.
    You'll now see a Wi-Fi icon at the top of the display.

Updating the connection settings

If you need to change Wi-Fi usage later:

  1. Select Settings > Network.
  2. Enter your passcode.
  3. Select Wi-Fi. You can now:
    • Turn Wi-Fi on or off using the WLAN toggle switch.
    • Add another network as described above.

Cellular 3G/4G failover

Your S1F2 terminal can automatically switch to processing payments using a cellular connection when the internet connection fails. Adyen terminals come with a pre-installed and activated SIM card so you can use the cellular network immediately to board the terminal.
However, terminals boarded before 2022 might not have the SIM card activated if you did not set up the card subscription with us at the time.
When in doubt, contact our Support Team.

Replace physical SIM card

To replace an old or defective physical SIM card with a new one:

  1. Turn off the payment terminal.
  2. On the back of the terminal, press the cover and slide it downwards.
  3. To access the SIM card slot, from the left push the latch inwards and remove the battery.
  4. Remove the SIM card from the slot.

    To prevent damage to the slot, do not use metal tools to manipulate the SIM cards.

  5. Install the new SIM card into the same slot.
  6. Reinstall the battery and the cover. Make sure the contacts align and that it clicks into place.
  7. Turn on the terminal and check if the cellular network icon shows at the top of display.

    You can also check the connection on your terminal, under Settings > Network > Cellular.

Turn on/off

If you turn on the payment terminal for the first time or after it was off for a long time, it may make a maintenance call to synchronize the configuration and update the software. This can take 10 to 20 minutes.

When connected to a power supply, the battery charges. An icon at the top of the display indicates the battery charge level.

Turn on the terminal:

  • Press and hold the power button until the display turns on. If necessary, connect the terminal to a power supply to charge the battery.

Turn off the terminal:

  • Press and hold the power button until a dialog box appears, then confirm you want to turn off the terminal.

Maintain battery performance

Storing payment terminals for longer periods of time can reduce the capacity of the battery or damage it permanently.

To prevent battery degradation:

  1. Check the storage conditions:

    • Store the terminals in a cool, dry place.
    • Keep the terminals away from direct sunlight or heat sources.
    • Avoid overcharging - do not store terminals with battery levels over 70 percent.
    • Avoid discharging - do not store terminals with battery levels below 40 percent.
  2. Inspect the batteries regularly:

    • Every six months, check for battery leakage or swelling.
    • Recharge batteries to the optimal level.

In case of battery failure, you can return or replace the terminal. For certain models, you can order spare batteries.

When returning a payment terminal, make sure to dispose of the faulty battery according to your local regulations. Do not include the faulty battery in the return package as it can lead to leakage and thermal discharge.

For more information, refer to Manage battery power.

Use the USB-C charging cable

The S1F2 payment terminal is supplied with a USB-C charging cable and a region-specific power plug. This cable is compliant with the USB industry and UL standards.

Always use the charging cable and the region-specific power plug provided by Adyen.

To prevent damage to the USB-C charging cable and the USB-C socket on the payment terminal, follow these guidelines:

  • Insert and remove the USB-C charging cable by holding the end that connects to the terminal or the power plug.
  • Do not insert or remove the USB-C charging cable in an upward, downward, left, or right direction.
  • Do not bend or fold the USB-C charging cable.
  • Do not use excessive force to insert or remove the USB-C charging cable.
  • Always inspect the USB-C charging cable and the USB-C socket on the payment terminal for foreign objects.
  • If the terminal operates in areas of high humidity, dust, or food residue, consider getting a charging station.

Payment terminal menus

Your payment terminals have a menu with options related to payments, and a menu with options related to configuration. The access to some menu options is protected by passcodes.

Menu/Button Description Passcode

Settings
  • Device info: view information about the payment terminal, like the serial number, configuration version, and store details. Update the software version. Scan to connect to the terminal.
  • Network: enable and configure network connections. Enable airplane mode.
  • Configuration: view, update, or remove the configuration version.
  • Display: adjust the screen brightness.
  • Diagnostics: run network connection tests or send us a diagnostic report.
  • Apps: overview of the apps and certificates installed on the terminal. If an app is scheduled to be installed or removed, this action is carried out when you open this menu.
  • No passcode required:
    • Device info
    • Diagnostics
    • Display
  • Admin & Settings passcode:
    • Apps
    • Configuration
    • Network
    • Device info> Software version

Transactions
  • History: view transactions stored on the terminal. Re-print the merchant/shopper receipt for an approved transaction.
  • Totals: view and print a transaction totals report. Reset transaction totals.
  • New transaction: Refund, MOTO payment, MOTO refund, Manual key entry as a standalone terminal. Select the AID priority.
  • Transactions passcode required:
    • History
    • Totals
    • New transaction
  • Refunds passcode required:
    • New transaction > Refund

Payment
  • No passcode required.

You can get the passcodes from your Customer Area or from your company's admin user.

Device info

To view information about the terminal:

  • Select Settings > Device info.

The screen shows:

  • Model, serial number, and IP address of the terminal.
  • Software version that the terminal currently uses.
  • The configuration version.
  • Merchant account that the terminal belongs to.
  • The store that the terminal is boarded to, and the store address.
  • A button to show a QR code with device info.
    When you contact our Support Team, they may ask you to scan this QR code.

The terminal can generate a Totals report. This gives an overview of the total amounts for sales, refunds, gratuities (tips), and cancellations that the terminal processed since the last reset of the report. By resetting the report, you can use this functionality to get day totals or shift totals.

To obtain the Totals report:

  1. Select Transactions > Totals.
  2. Enter the Transactions menu passcode.
  3. You can now:
    • View a Totals report for the period shown at the top of the report.
    • Print the Totals report by selecting the print button:
    • Start a new reporting period by selecting the reset button:
    • Access the report from the previous reporting period.

Resetting automatically

To automatically reset the Totals every day at a specific hour, contact our Support Team.

Solução não integrada

Se você estiver usando o terminal como terminal não integrado, as transações não serão iniciadas a partir de uma caixa registradora. Em vez disso, você precisa iniciar transações a partir do próprio terminal.
Consulte Terminais não integrados para instruções sobre como efetuar pagamentos, cancelar pagamentos, emitir reembolsos e (quando necessário) inserir manualmente os detalhes do cartão para efetuar um pagamento.

Airplane mode

For the airline industry the payment terminal has an airplane mode. When preparing for take-off, turning on airplane mode is the quickest way to turn off all cellular and other network connections on the terminal.

When you turn airplane mode off again, the previous connections are restored.

Enable airplane mode

To be able to use airplane mode, contact our Support Team and ask them to enable this feature. The Network menu on the terminal will then include an Airplane mode option.

Use airplane mode

To turn on airplane mode:

  1. On the terminal, select Settings > Network.
  2. Enter the passcode.
  3. In the Network menu, turn on the Airplane mode toggle.
    All connections (Wi-Fi, Bluetooth, and Cellular) are now Off.

To turn off airplane mode:

  1. On the terminal, select Settings > Network.
  2. Enter the passcode.
  3. In the Network menu, turn off the Airplane mode toggle.
    All previous connections (Wi-Fi, Bluetooth, and Cellular) are now restored.

Kiosk mode

The kiosk mode is intended for payment terminals in unattended environments, such as next to a vending machine, token dispenser, or parking payment systems. It allows the use of the payment terminals without the risk of customers powering off the terminal or entering the settings of special payment menus.

To configure the kiosk mode, contact our Support Team. Ask them to enable one or all of the following features:

  • Set a different default app. Customers can only interact with an Android app that you uploaded on the payment terminal.
  • Hide the navigation buttons. Customers cannot use the Android buttons at the bottom of the screen to change or minimize the default app.
  • Hide the menu buttons. The Settings and Transactions menu buttons do not show on the home screen.

Barcode scanning

The S1F2 payment terminal has a barcode-scanning camera that you can activate by pressing the side button. You need to have an Android app with an input text box installed on the terminal. When you press the button, the terminal scans the barcode and automatically pastes the content into the selected text box in the app. If the Android app is not open, or if no text box is selected, the button does not activate the barcode scanner.

You can enable barcode scanning per company, merchant accounts, store or terminal level.

To enable the barcode scanner:

  1. Log into your Customer Area.
  2. Go to Terminal Settings > Hardware > Barcode scanner.
  3. Under Enable barcode scanner button, select Enabled.
  4. If you want the terminal to play a sound when scanning, under Play a beep select Enabled.
  5. If you want to place a separator after each scan, under Separator choose one of the following options:
    • New line: passes the content of each scanned barcode in a new line. This option is set by default.
    • Custom: in the Custom character field, specify the character that you want to use as a separator.
  6. Select Save.

For advanced barcode-scanning use cases, see how you can activate the barcode scanner with a Terminal API request.

Solução de problemas

Autoatendimento

Se houver algum problema com o seu terminal, tente primeiro diagnosticar e resolver o problema usando a nossa seção Solução de problemas para POS. Na maioria das vezes, essa será a solução mais rápida.

Solicitar assistência

Se você não conseguir resolver o problema usando a seção de solução de problemas, envie um e-mail para a Support Team.

Providencie as seguintes informações:

  • Conta do comerciante.
  • Referência PSP, se aplicável.
  • Número de série do terminal. Este número está impresso na parte traseira do terminal. Por exemplo: S / N: 123-456-789.
