UX300 user manual

Learn how to set up, configure, and use the UX300 unattended payment terminal.

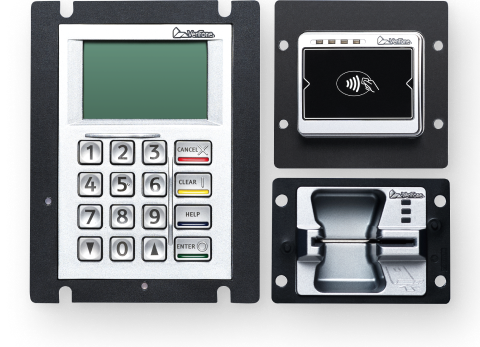

A UX300 unattended payment terminal consists of three separate devices:

  • UX300 card reader
  • UX100 PIN pad with a display
  • UX400 NFC-reader

These devices are intended for mounting in your kiosk, vending machine, ticket machine, or other type of self-service machine.

Ordering unattended terminals

To order a UX300 unattended terminal, select UX300 in your Customer Area. All three devices will be included in the delivery.

Provided components

Component Device dimensions Cutout dimensions
UX300 card reader Height 71mm x Width 96 mm x Depth 150mm Height 61,2mm x Width 73,2mm
UX100 PIN pad Height 142mm x Width 108mm x Depth 26mm Height 120mm x Width 82mm
UX400 NFC-reader Height 92mm x Width 100mm x Depth 27mm Height 61,2mm x Width 73,2mm

Get started

Get your new unattended terminal up and running:

  1. Assign the terminal to your store.
  2. Ask your Adyen contact or our POS Support Team for the ARS password. You'll need this during the setup.
  3. Inspect the terminal.
  4. Set up the UX300 terminal:
    1. Mount the UX devices in the front panel of the self-service machine.
    2. Connect the cables.
    3. Reset the anti-removal switches.
    4. (Optional) If you can't use a DHCP server, assign a static IP address.
    5. Board the terminal.
    6. Update the terminal software.
  5. Do any remaining steps related to mounting the UX devices.

When you've completed these steps, you're ready to process payments!

Assign the terminal

During the installation, the UX300 terminal obtains its configuration by boarding itself to your store. Contrary to most other terminals, you always need to assign an unattended terminal to a store before boarding the terminal.

Inspecione o terminal

Como os terminais processam dados confidenciais do cartão, é importante garantir que o terminal que você recebeu seja o terminal Adyen correto e que não tenha sido adulterado. Se alguma das seguintes verificações falhar, entre em contato com nossa POS Support Team imediatamente.

  1. Verifique se a caixa que contém o terminal não foi aberta e se o selo de segurança está intacto.
    O selo de segurança é uma etiqueta vermelha com um código de barras e um número, colada na tampa da caixa.
  2. Se você tiver acesso à Customer Area da Adyen, faça o login e, em Point of sale, localize o pedido do seu terminal. Então:
    • Verifique se o terminal serial number (S/N) na caixa é igual ao da área do cliente.
    • Verifique se o security seal number na caixa é igual ao da área do cliente.
    • Usando as informações de track & trace na área do cliente, acompanhe o pedido com a transportadora para verificar se eles confirmam a entrega do terminal de pagamento.
  3. Quebre o selo de segurança, retire o terminal da caixa e verifique se o terminal serial number (S/N) no próprio terminal é o mesmo que o número de série na caixa.
  4. Inspecione o terminal quanto a adulteração. Verifique se faltam vedações ou parafusos, fios ou etiquetas adicionais, orifícios no dispositivo e qualquer coisa inserida ou conectada a qualquer parte do terminal, como o leitor de cartões ou as portas.

Mount the UX devices

You need to mount the UX300 card reader, UX100 PIN pad, and UX400 NFC-reader in the front panel of your self-service machine. You may also need to install a drain tube and connect grounding cables or a ground harness. To learn how to mount the UX devices, refer to:

  • The installation instructions from the manufacturer of your self-service machine.
  • The installation instructions from Verifone, the manufacturer of the UX devices.

Connect the cables

  1. Connect an Ethernet cable between the ETH (LAN) port of the UX300 card reader and your network.

    Only connect a regular Ethernet cable to the ETH (LAN) port. Using any other type of cable or another port, such as the RS232 port, might severely damage the device.

  2. Connect the card reader to the UX400 NFC-reader:

    • Connect an antenna cable between the UX400 RF port on the card reader and the NFC-reader.
    • Connect an RJ-45 communication cable between the COMM port on the card reader and the NFC-reader.

  3. Connect the card reader to the UX100 PIN pad with a USB Type A-B cable, using the powered USB-1 port on the card reader.
  4. Connect the card reader to a power supply unit in the self-service machine or to an external power source, using the DC-in port on the card reader.

The UX terminal now starts up.

Reset the anti-removal switches

The UX terminal has a number of anti-removal switches (ARS) that put the terminal out of service when someone tries to physically tamper with the device. Mounting the terminal also triggers these switches.

To continue setting up the terminal, you need to reset the ARS switches:

  1. When the display of the UX100 PIN pad shows Out of Service, press OK to confirm you want to Reset the ARS.
  2. When the display asks for the Switch 1 password, enter the ARS password you received from Adyen and press OK.
  3. When the display asks for the Switch 2 password, enter the same ARS password and press OK.

The display should now show the Adyen logo, and then "Terminal is not boarded".

Resetting anti-removal switches after boarding

Sometimes the ARS switches are triggered later on in the process of getting the terminal up and running, after the terminal is boarded. When this happens, the display doesn't indicate the terminal is out of service. You can start a transaction, but the transaction can't be completed because PIN entry is prevented.

To ensure the terminal will function properly, you need to reset the ARS switches again:

  1. On the back of the UX300 card reader, press the service switch.
  2. On the UX100 PIN pad, press OK to confirm you want to Reset the ARS.
  3. When the display asks for the Switch 1 password, enter the ARS password you received from Adyen and press OK.
  4. When the display asks for the Switch 2 password, enter the same ARS password and press OK.

The display should now show your logo.

(Optional) Use a static IP address

By default, DHCP is enabled on the UX300 unattended payment terminal. With this setting, your DHCP server assigns an IP address to the terminal.

Define a static IP address

If you are not able to use a DHCP server, you need to disable DHCP and define a static IP address for the terminal.

  1. On the UX100 PIN pad, press 9 and then press OK.
  2. Enter the PIN code for the Admin menu and press OK. If you don't know this code, see our POS Troubleshooting section.
  3. Select 1 Network and press OK.
  4. Select 2 Ethernet and press OK. The IP settings page opens with the pointer in the IP address field.
  5. Disable DHCP: Press the Up arrow key to go to the Use DHCP check box at the top of the page, and then press OK to clear the check box.
  6. Enter your network information in the remaining fields.

    • To go from field to field, use the Up and Down arrow keys.
    • To remove characters, press CORR.
    • To type a dot (.) press 0 two times.

  7. To apply the changes and close the menu, press STOP.

Board the terminal

Remember that the terminal can only board if it is assigned to your store.

  1. When the display shows Board the terminal, on the UX100 PIN pad press OK.
  2. When the display shows the store that the terminal is assigned to, press OK to confirm.

Update the terminal software

  1. On the UX100 PIN pad, press 9 and then press OK.
  2. Enter the PIN code for the Admin menu and press OK. If you don't know this code, see our POS Troubleshooting section.
  3. Select 2 Software and press OK.
  4. Press OK to confirm you want Update the software.

When the terminal finishes downloading and installing the software, it reboots. After that, you're ready to accept payments.

Settings and transactions

With the Admin menu on the UX300 unattended payment terminal you can view and change various settings, update the software, and view the transactions made with the terminal.

  1. On the UX100 PIN pad, press 9 and then press OK.
  2. Enter the PIN code for the Admin menu and press OK. If you don't know this code, see our POS Troubleshooting section.
  3. Select the option you want to use and press OK.

    Option Description
    1 Network

    View and change network settings.

    Select Test PSP connection to verify whether the terminal is able to establish a connection with the Adyen payments platform.

    2 Software Update the terminal software.
    3 Config Update, view, and remove the configuration of the terminal.
    4 Transactions View transactions.
  4. To view configuration information:

    • In the Admin menu, select 3 Config and press OK.
    • Select 2 View and press OK.
    • Select the option you want to use and press OK.

      Option Description
      Settings Customer Area settings for the terminal.
      Firmware Release and version number of the terminal software.
      Hardware Terminal ID, serial port, and other hardware characteristics.
